Industrial Honeycomb SCR Catalyst

Industrial SCR catalyst

Industrial Honeycomb SCR catalyst
Industrial SCR catalyst
Honeycomb SCR catalyst
SCR catalyst
Product description: Industrial Honeycomb SCR catalyst;Industrial SCR catalyst; Honeycomb SCR catalyst;SCR catalyst
INQUIRY

The SCR (Selective catalytic reduction) technology is denitration catalyst in the appropriate temperature, using ammonia (NH3) as the reducing agent, take the advantage of the reducing agent selective, preferentially reaction with industrial flue gas of nitrogen oxide(NOX), NOX is converted into no pollution of nitrogen and water, and NOx reduction efficiency is as high as above 90%. Thereby reducing NOX emissions, and reducing smoke pollution to the environment. SCR denitration technology has become the mainstream technology of flue gas denitrification in the world.

At present, the commercial SCR catalysts are basically using TiO2 as base material and V2O5 as the main active ingredient, with WO3 and MoO3 as anti-oxidation and anti-poisoning auxiliary components.

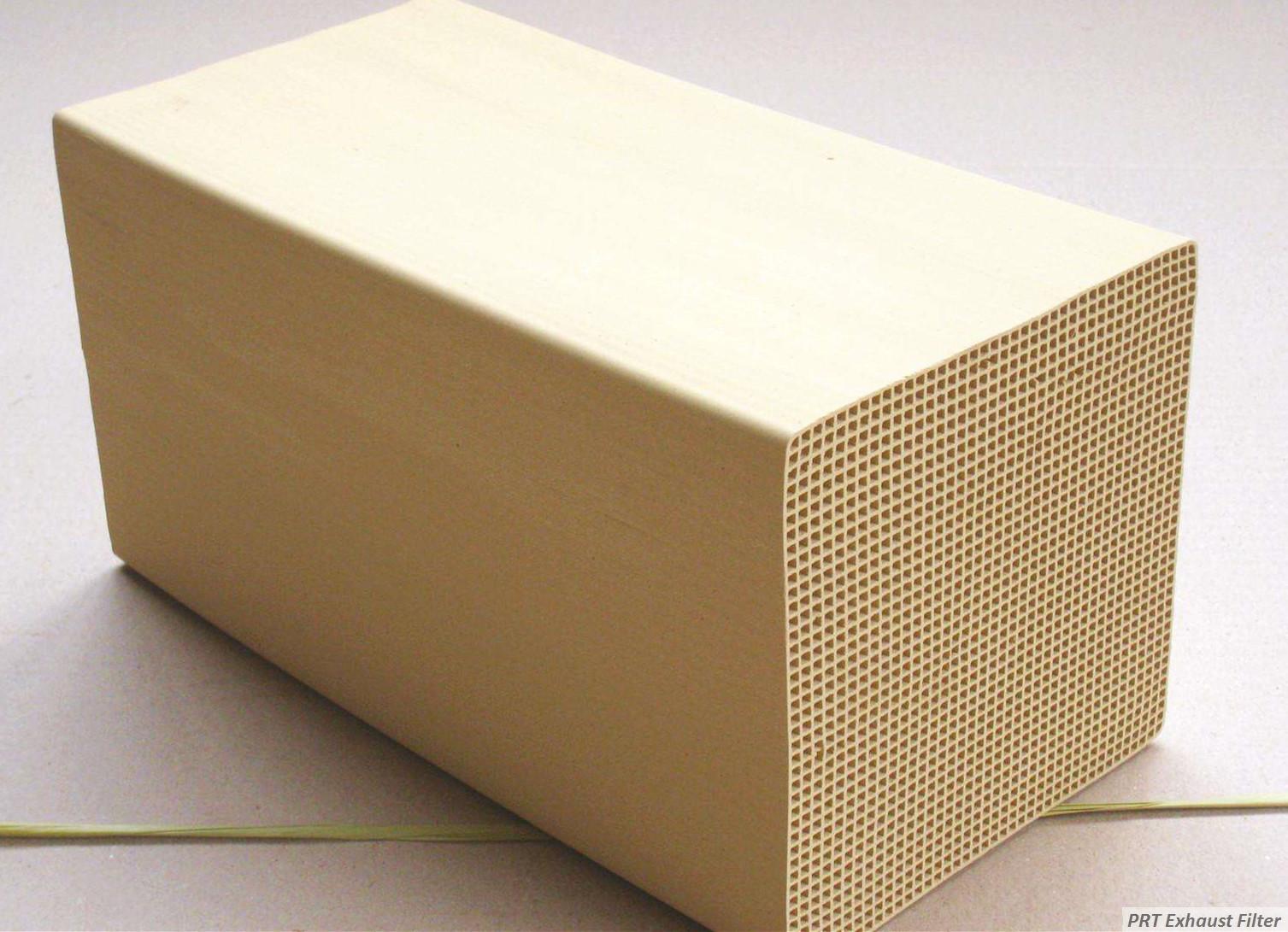

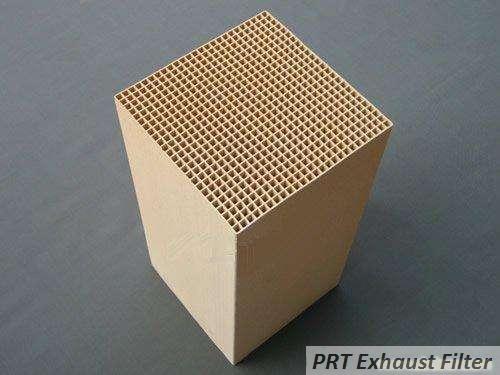

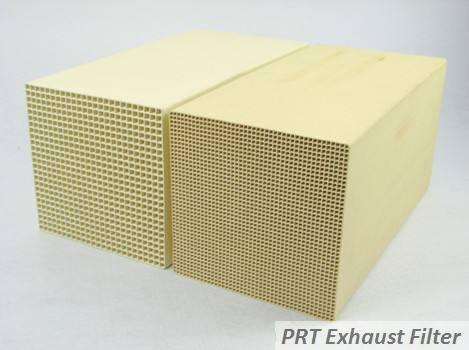

PRUITING®'s Industrial Honeycomb SCR catalyst is a porous honeycomb homogeneous product, its main backing material is TiO2, WO3,V2O5 and so on.

Typical industrial applications:

It is widely used inthermal power plants, coal-fired power plants, waste incineration plants, steel plants, fertilizer plants, nitric acid plants, cement plants, petrochemical chemical plants and other all industrial which need to reduce the NOx emissions, also used in diesel engines tail gas treatment etc..

Specifications for PRUITING’S Industrial Honeycomb SCR catalyst

Hole Number (PCS)	Cross Section (mm)	Hole Dia. (mm)	Wall Thickness (mm)	Catalyst Pitch (mm)	Open Porosity (%)	Specific Surface Area (m2/m3)	Applicable Scope
15×15	150×150	8.45	1.35	9.80	71.40	338	Coal fired unit, high smoke dust
16×16	150×150	8.00	1.20	9.20	72.82	383	Coal fired unit, high smoke dust
18×18	150×150	7.10	1.10	8.20	72.60	409	Coal fired unit, medium dust
20×20	150×150	6.40	1.00	7.40	72.82	469	Coal fired unit, medium dust
21×21	150×150	6.10	0.95	7.05	72.93	478	Coal fired unit, low smoke dust
22×22	150×150	5.80	0.90	6.70	72.36	499	Coal fired unit, low smoke dust
25×25	150×150	5.00	0.90	5.90	69.44	577	Coal fired unit, very low dust
30×30	150×150	4.10	0.80	4.90	67.24	693	Oil fired unit, very low dust
35×35	150×150	3.65	0.55	4.20	72.53	795	Oil fired unit, very low dust
40×40	150×150	3.20	0.50	3.70	72.82	910	Natural gas fired unit
45×45	150×150	2.78	0.50	3.28	69.56	1000
55×55	150×150	2.20	0.50	2.70	65.07	1275
Unit catalyst size:150×150×(length 50-1350) mm.
