PRUITING®'s advanced honeycomb substrate is made from cordierite material and can be used at temperature up to 1350 ℃. Because of its nature of crystallization,crystal- chemical formula cordierite has extremerly low coefficient of thermal expansion. High specific surface area, low pressure drop, rapid light-off time and reliable & durable performance are achieved through high cell density of 400 and 600 CPSI.
Honeycomb-like structure with thousands of parallel channels forces exhaust gases into the turbulent flow regime resulting in better contact between emission and precious metal, enhanced mass-transfer conditions, and higher conversion efficiency.

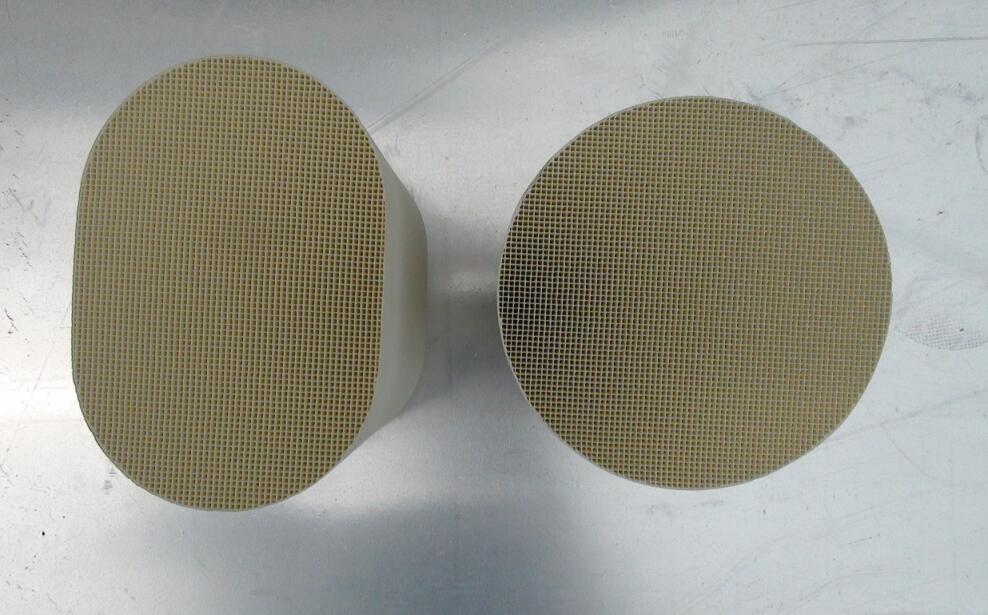

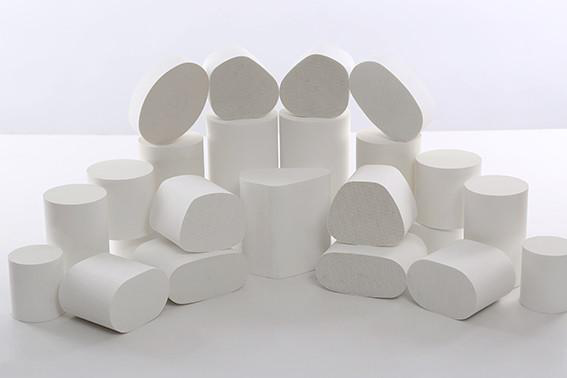

All of these make our ceramic honeycomb an ideal catalyst substrate media for oxidation & reduction catalyst. Current, our typical substrate are available in a variety of sizes with the different shapes, such as: round, elliptical, race track and so on.
Our universal specification and size:
(A) Specification of 100 aperture/inch2～600 aperture/inch2 typical products in round shape:
|
NO. |
Specification |
No. |
Specification |
No. |
Specification |
|
1 |
φ76.2×50 |
11 |
φ101.6×123.4 |
21 |
φ118.4×120 |
|
2 |
φ80×60 |
12 |
φ103×100 |
22 |
φ118.4×152.4 |
|
3 |
φ83×60 |
13 |
φ103×130 |
23 |
φ118.4×136 |
|
4 |
φ83×125 |
14 |
φ106×80 |
24 |
φ150×100 |
|
5 |
φ83×85 |
15 |
φ106×130 |
25 |
φ170×100 |
|
6 |
φ93×60 |
16 |
φ106×152.4 |
26 |
φ105.7×152.4 |
|
7 |
φ93×101.6 |
17 |
φ110×130 |
27 |
φ105.7×130 |
|
8 |
φ93×152.4 |
18 |
φ110×150 |
28 |
φ97×170 |
|
9 |
φ100×100 |
19 |
φ112×80 |
29 |
φ194.5×101.6 |
|
10 |
φ101.6×76 |
20 |
φ118.4×100 |
30 |
φ105.4×80 |
(B) Specification of 100 aperture/inch2～600 aperture/inch2 typical products in racetrack shape and ellipse:
|
NO. |
Specification |
NO. |
Specification |
|
1 |
80×57×85 R21.5 |
11 |
169.7×80.8×152.4 R37.2 |
|
2 |
99.8×68.1×120.6 R33.6 |
12 |
177.8×114.3×170 R44.9 |
|
3 |
112×60×90 R28 |
13 |
169×85.7×127 R30 |
|
4 |
120.6×80×152.4 R39.6 |
14 |
127×61×120.7 R23 |
|
5 |
144×68×152.4 R28.4 |
15 |
130×85×150 R41 |
|
6 |
144.3×68.1×152.4 R32.2 |
16 |
112×60×80 R28.3 |
|
7 |
144.8×81.3×152.4 R37 |
17 |
148.6×83.4×81 R38 |
|
8 |
147×76.5×76 R30 |
18 |
148.6×83.4×163 R38 |
|
9 |
147×95×152.4 R36.6 |
19 |
131×86×80 R35 |
|
10 |
148×84×152.4 R38 |
20 |
125×80×125 R32 |

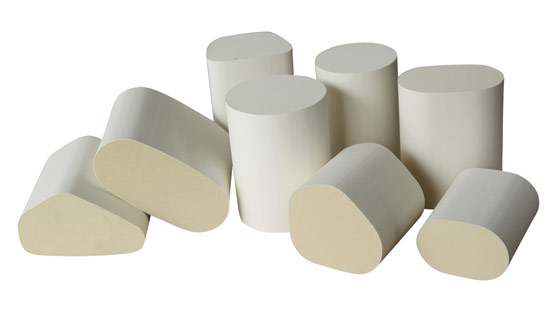

(C) Specification of 100 aperture/inch2～600 aperture/inch2 typical products in irregular shape:
|
NO. |
Specification |
NO. |
Specification |
|
1 |
Triangle144×84×76 |
11 |
Trapezium122.3×104.4×80 |
|
2 |
Triangle144×84×155 |
12 |
Rectangle119.5×99.5×115 |
|
3 |
Triangle143.5×84×155 |
13 |
Irregular shape 114×105×115 |
|
4 |
Triangle144×84×130 |
14 |
Irregular shape 114×105×85 |
|
5 |
Triangle144×84×152.4 |
15 |
Irregular shape 114×105×110 |
|
6 |
Triangle 144×84×50 |
16 |
Irregular shape 114×105×80 |
|
7 |
Trapezium112.2×92×152.4 |
17 |
Pear shape 120.2×108×75 |
|
8 |
Trapezium112.2×92×50 |
|
|
|
9 |
Trapezium112×91×152.4 |
|
|
|
10 |
Trapezium122.3×104.4×80 |
|
|
