Ceramic heat accumulation substrate

Product description: Honeycomb ceramic heat accumulation substrate
INQUIRY

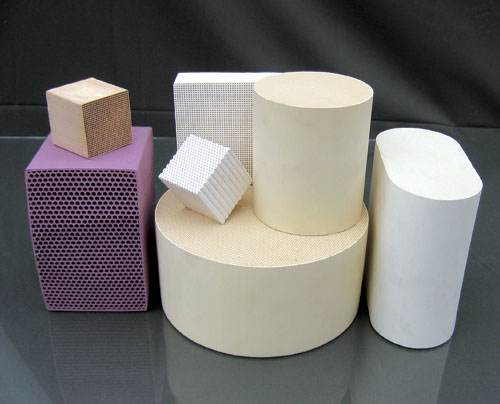

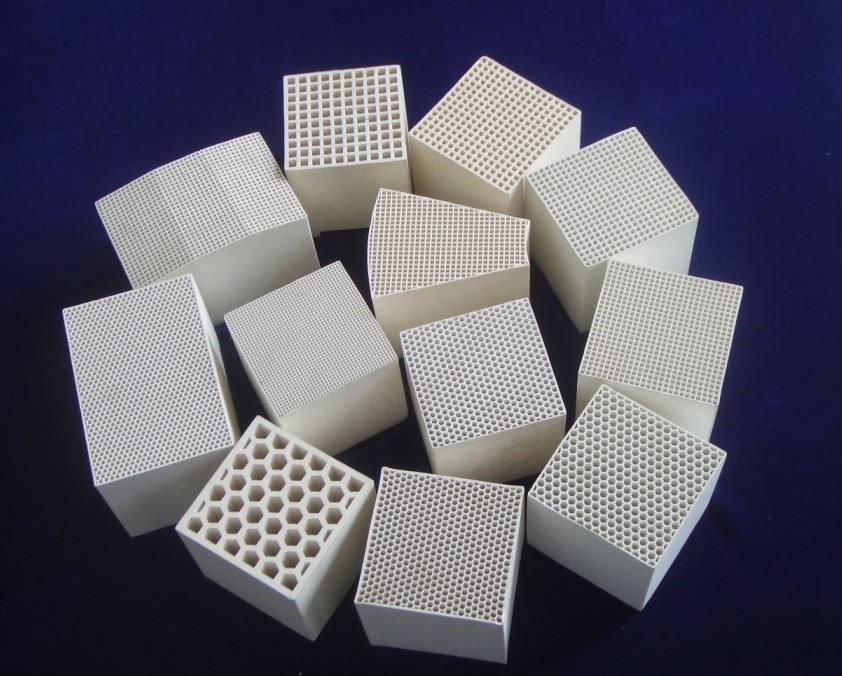

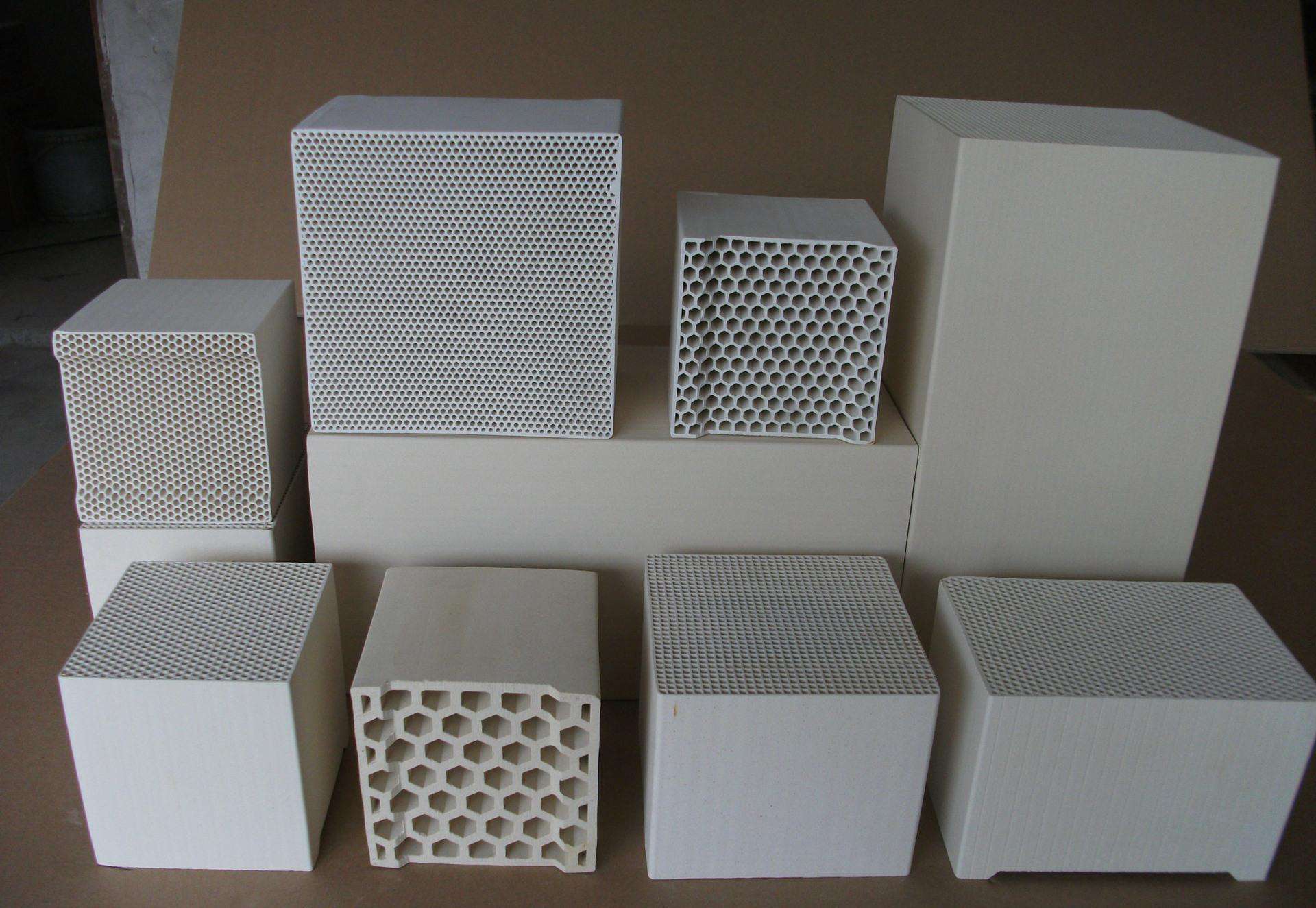

PRUITING®'s Honeycomb ceramic heat accumulation substrate are made of corundum-mullite, cordierite-mullite, cordierite, mullite, zirconia-mullite, carbo-corundum and so on with different hole shapes, such as square hole and hexagon hole, different wall thicknesses from 0.5mm to 5mm, and different figure specs.

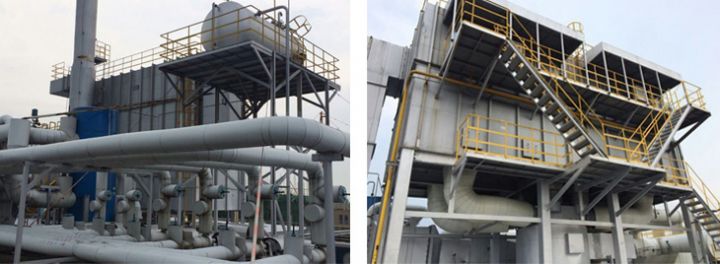

Ceramic Honeycomb as the media of heat storage and heat exchange, has been widely applied in the fields of metallurgy, petroleum & chemical industry, electric power, boiler and so on.

It has high surface area,small resistance and thermal expansion,strong chemical corroding resistance,excellent thermal shock resistance.

A）. Specification for cordierite heat accumulation substrate：

Chemical analysis

Comosition	Value(%)
Al2O3	28~38
SiO2	45~55
MgO	12~14
Others	＜5

Physical properties

Index	Unit	Value
Density	g/cm3	1.7~2.0
Coefficient of heat expansion	（X10-6K-1)（20-800℃）	≤3.0
Specific Heat	（J/Kg.k）（20～1000℃）	900~1150
Thermal Conductivity	（20～1000℃）	1.2～1.8
Impact Thermal Resistance	（℃/min）	≥350
Max.Working Temp.	℃	1320
Water absorption	%	15~25

Dimension and other physical properties

Dimension	Quantity of channels	Wall thickness	Outside wall thickness	Channel Width	Void section	Weight piece
150×150×300	25×25	1.0mm±0.1	1.2mm±0.15	4.8-5.0mm	67%	3.2-4.2kg
150×150×300	32×32	0.9mm±0.1	1.2mm±0.15	3.8-3.9mm	61.6%	3.7-4.7kg
150×150×300	40×40	0.7mm±0.1	1.1mm±0.15	2.9-3.1mm	64%	3.6-4.6kg
150×150×300	43×43	0.65mm±0.1	1.1mm±0.15	2.7-2.9mm	62%	3.7-4.7kg
150×150×300	50×50	0.6mm±0.1	0.8mm±0.15	2.3-2.5mm	61%	3.8-4.8kg
150×150×300	60×60	0.45mm±0.1	0.8mm±0.15	1.9-2.1mm	63.4%	3.6-4.6kg
