  • Product description: Cordierite Diesel particulate filter substrate,DPF,DPFs
  • INQUIRY

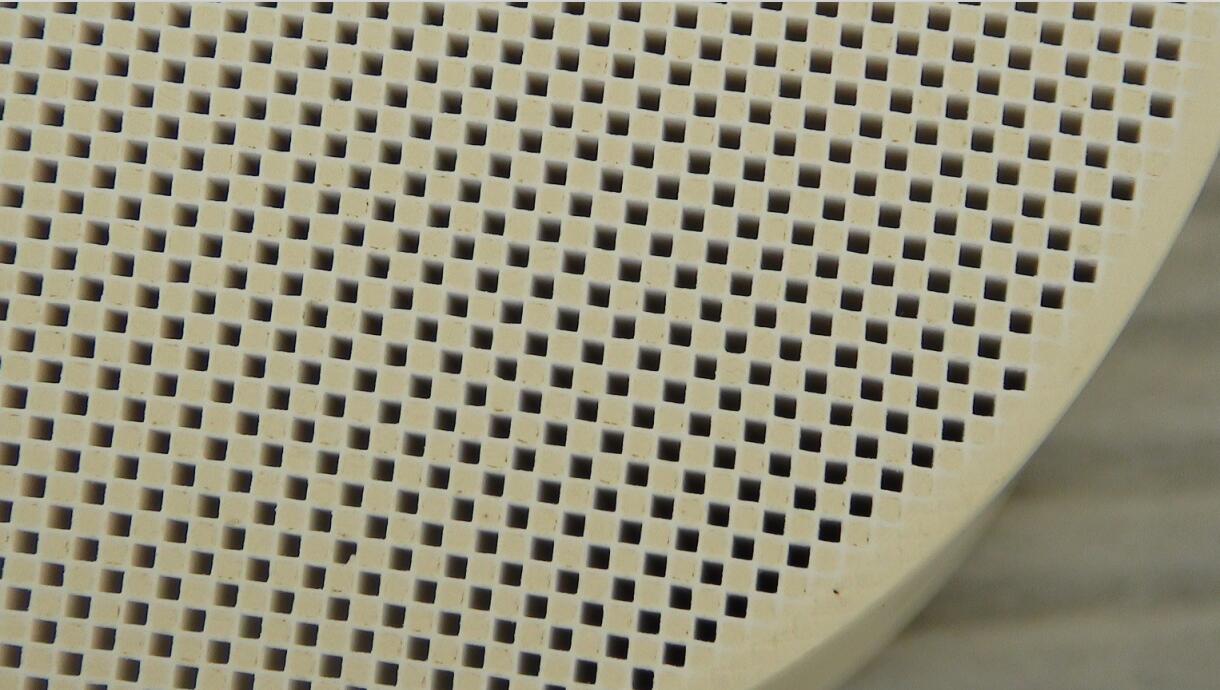

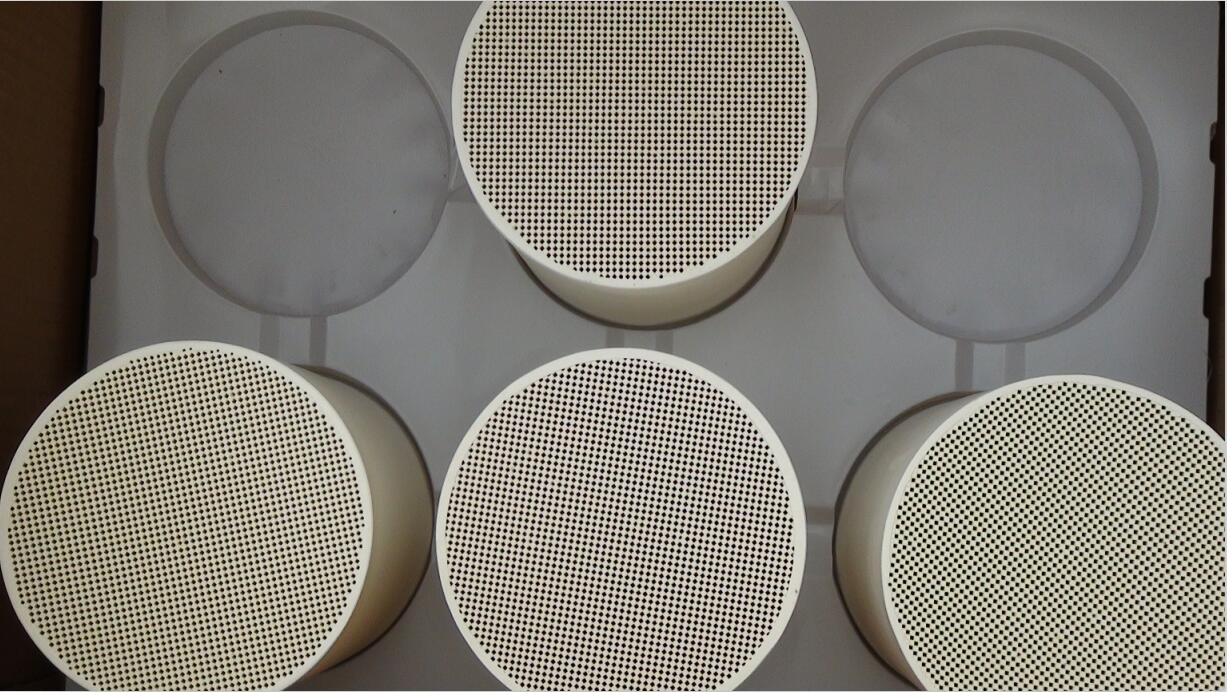

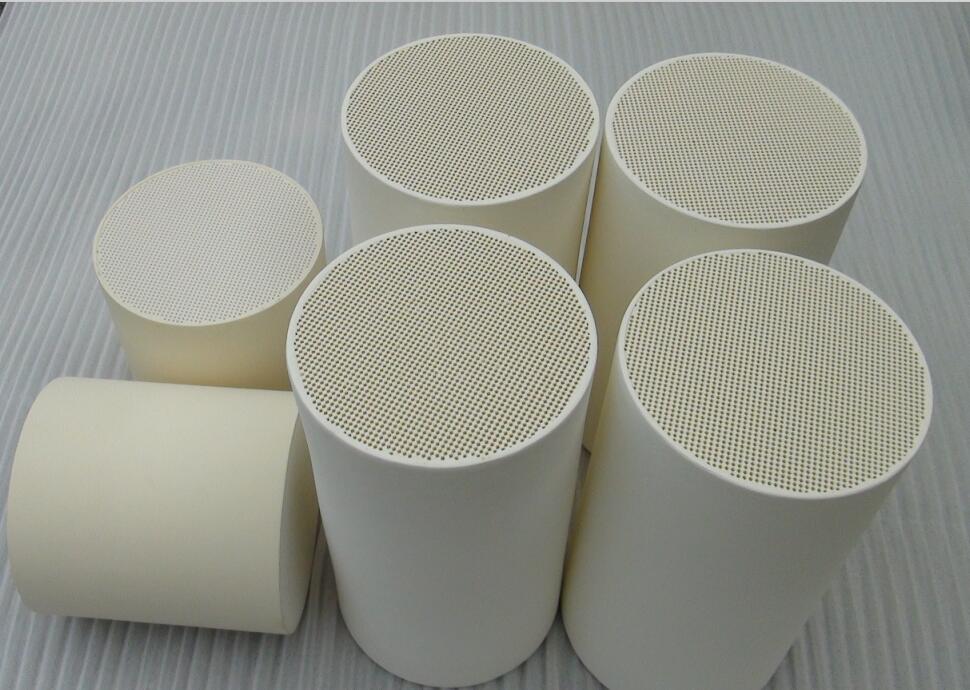

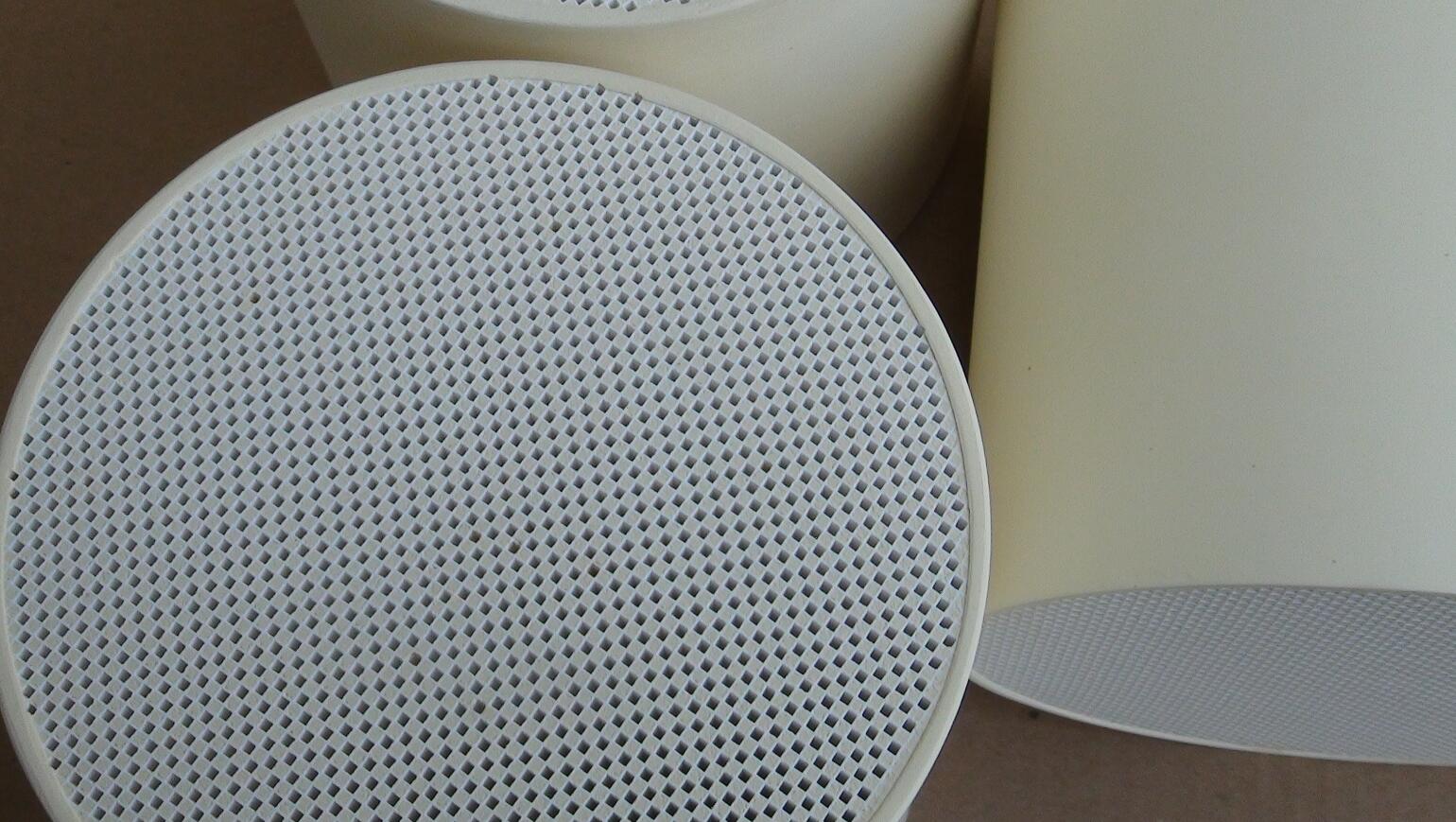

An economic porous wall flow type ceramic filter is also available for diesel particulate mater removal called diesel particulate filter. Such a ceramic filter is made from modified cordierite ( 2MgO-Al2O3-5SiO2). Current our DPF series has both 100 and 200 cpsi option and size is from 1.0 liters to 43 liters.


PRUITING®'s DPFs enable highly efficient particulate matter trap systems by offering
· Low thermal expansion
· High filter specific surface area
· Low pressure drop
· Long-term durability performance
· High soot removal: >95%
· Excellent thermal shock resistance.


Specification for PRUITING®'s Cordierite Diesel Particulate Filter


Hole density

Shape

Dimension (mm)

Volume (Liter)

100 CPSI-200CPSI

Round

φ93×153

1.0394

φ127×152.4

1.9308

φ144×150

2.4432

φ144×152.4

2.4823

φ150×150

2.6511

φ144×254

4.1372

φ190×200

5.6713

φ190×203

5.7556

φ228×305

12.4542

φ240×100

4.5245

φ240×240

10.8588

φ240×305

13.7997

φ260×305

16.1954

φ267×305

17.0792

Φ286×267

17.1550

φ286×305

19.5965

φ286×355

22.8098

φ286×381

24.4763

Φ305×305

22.287

Φ305×381

27.840

Φ381×381

43.438

Oval

188×103×145

2.2055

207×101×200

3.282

Racetrack

374×270×317

27.0537
