Exhaust emissions from gasoline engine operations are comprised of CO, hydrocarbons (HC) and Nitrogen oxides (NOx). Gasoline engine operation is controlled at vary narrow air/fuel ratio which is close to proper value so the emissions of CO, HC and NOx can be removed simultaneously on three way catalytic converters.

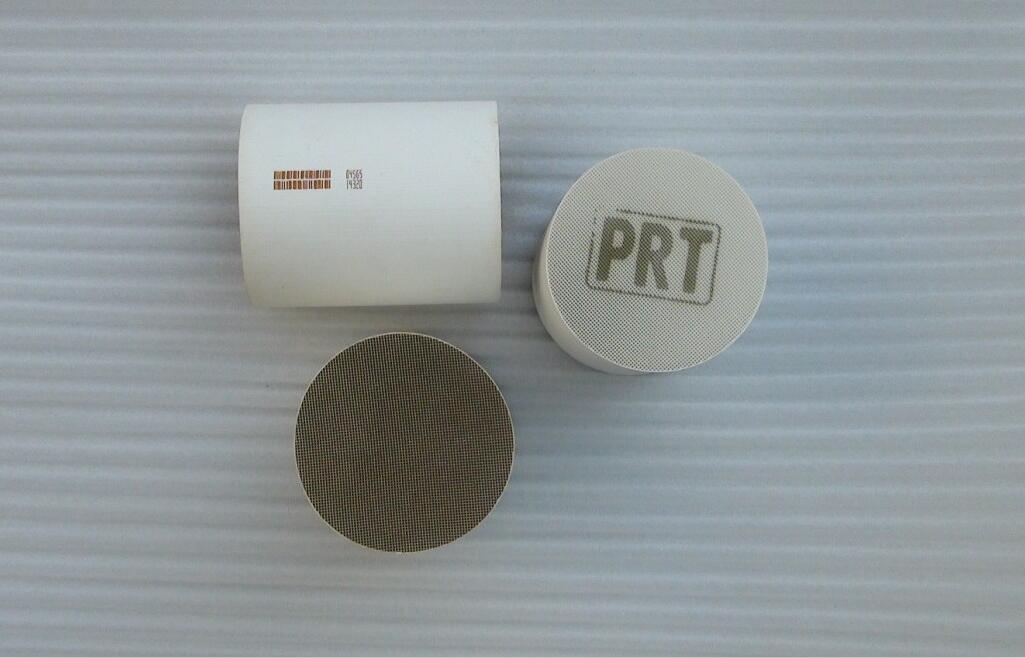

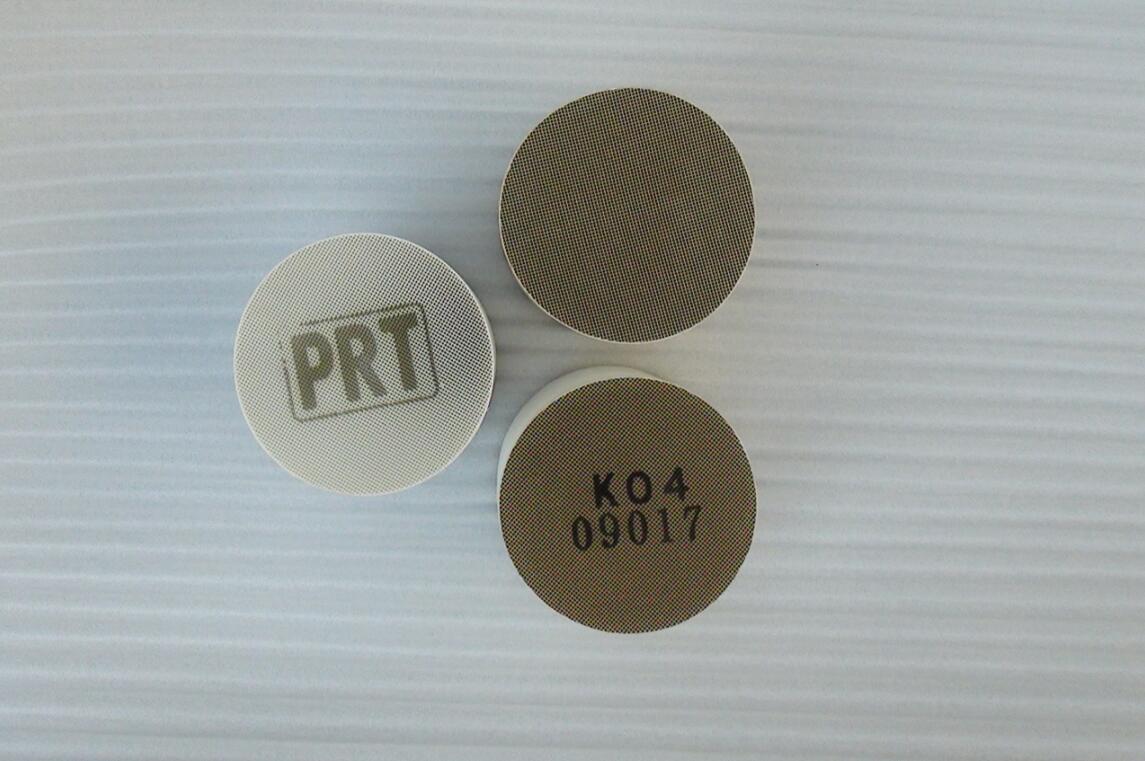

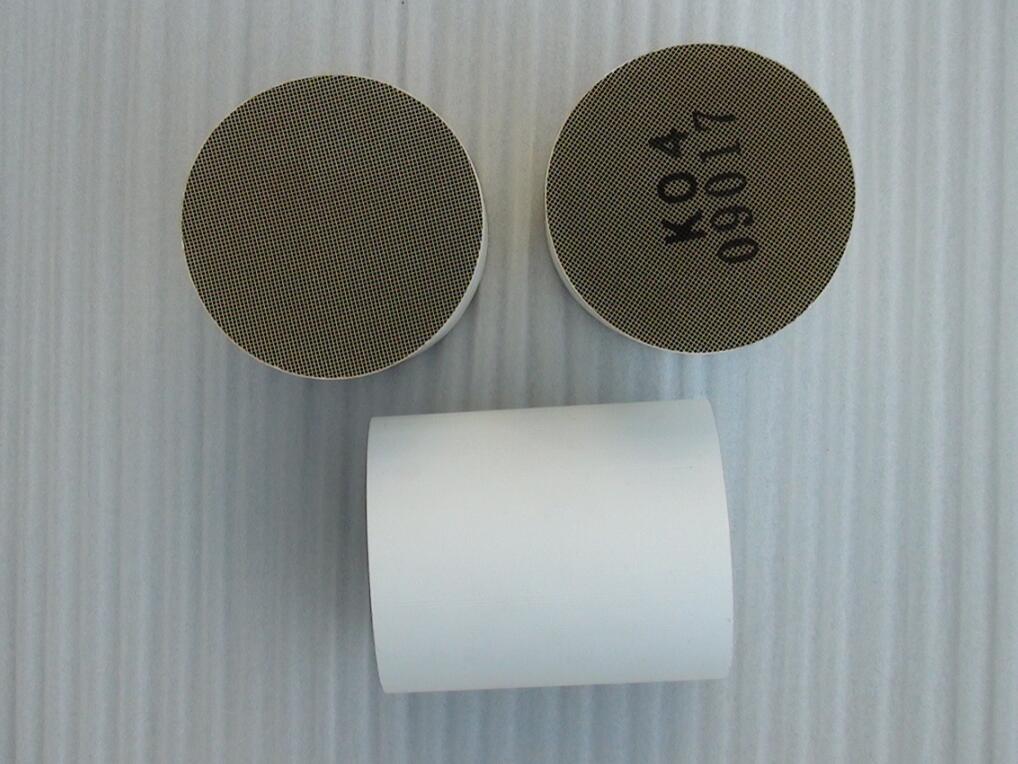

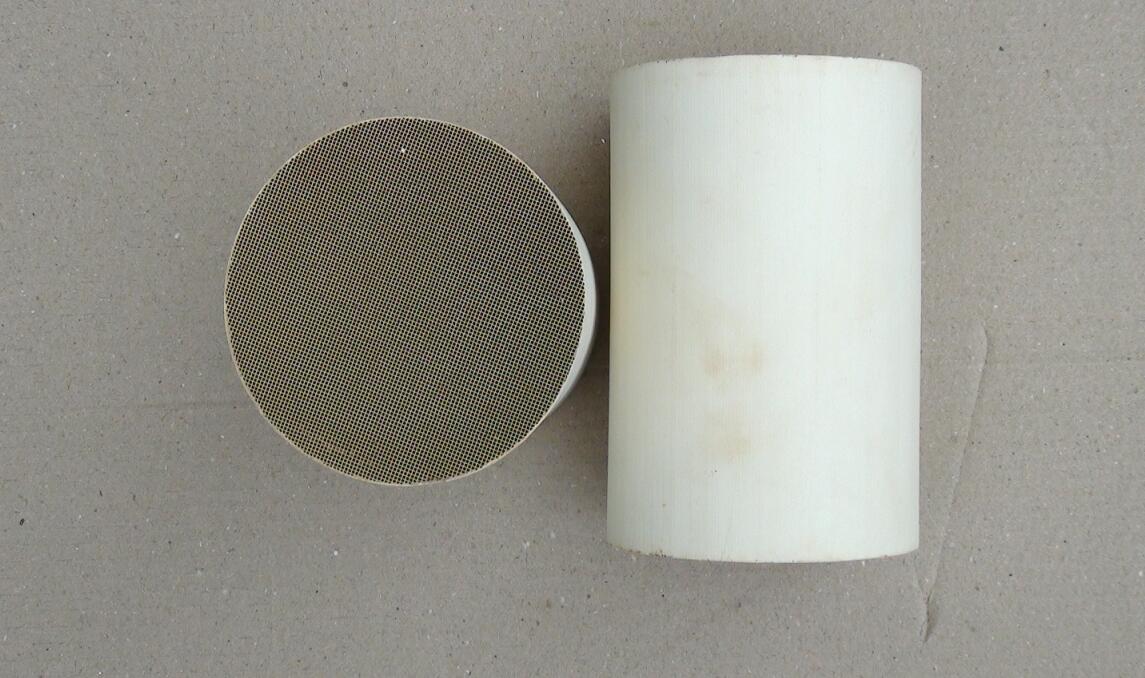

PRUITING®'s ceramic catalyst are based on the proprietary catalyst formulation of precious metal / base metal combination coated on ceramic honeycomb substrates. After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching Euro III,Euro IV and Euro V etc. emission standard both for OEM & Aftermarket.
PRUITING®'s coated substrates enable high emissions conversion systems by offering:
• Excellent substrate,aperture wall is thin, and its total area is larger than superficial area.
• High performance,good thermal impact resistance and thermal shock resistance,good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion
• Low pressure drop
• 80,000 km Least Life Time
Our universal specification and size:
(A) Specification of 100 aperture/inch2～600 aperture/inch2 typical products in round shape:
|
NO |
Specification |
No. |
Specification |
No. |
Specification |
|
1 |
φ76.2×50 |
11 |
φ101.6×123.4 |
21 |
φ118.4×120 |
|
2 |
φ80×60 |
12 |
φ103×100 |
22 |
φ118.4×152.4 |
|
3 |
φ83×60 |
13 |
φ103×130 |
23 |
φ118.4×136 |
|
4 |
φ83×125 |
14 |
φ106×80 |
24 |
φ150×100 |
|
5 |
φ83×85 |
15 |
φ106×130 |
25 |
φ170×100 |
|
6 |
φ93×60 |
16 |
φ106×152.4 |
26 |
φ105.7×152.4 |
|
7 |
φ93×101.6 |
17 |
φ110×130 |
27 |
φ105.7×130 |
|
8 |
φ93×152.4 |
18 |
φ110×150 |
28 |
φ97×170 |
|
9 |
φ100×100 |
19 |
φ112×80 |
29 |
φ194.5×101.6 |
|
10 |
φ101.6×76 |
20 |
φ118.4×100 |
30 |
φ105.4×80 |
(B) Specification of 100 aperture/inch2～600 aperture/inch2 typical products in racetrack shape and ellipse:
|
NO |
Specification |
NO. |
Specification |
|
1 |
80×57×85 R21.5 |
11 |
169.7×80.8×152.4 R37.2 |
|
2 |
99.8×68.1×120.6 R33.6 |
12 |
177.8×114.3×170 R44.9 |
|
3 |
112×60×90 R28 |
13 |
169×85.7×127 R30 |
|
4 |
120.6×80×152.4 R39.6 |
14 |
127×61×120.7 R23 |
|
5 |
144×68×152.4 R28.4 |
15 |
130×85×150 R41 |
|
6 |
144.3×68.1×152.4 R32.2 |
16 |
112×60×80 R28.3 |
|
7 |
144.8×81.3×152.4 R37 |
17 |
148.6×83.4×81 R38 |
|
8 |
147×76.5×76 R30 |
18 |
148.6×83.4×163 R38 |
|
9 |
147×95×152.4 R36.6 |
19 |
131×86×80 R35 |
|
10 |
148×84×152.4 R38 |
20 |
125×80×125 R32 |
(C) Specification of 100 aperture/inch2～600 aperture/inch2 typical products in irregular shape:
|
NO |
Specification |
NO. |
Specification |
|
1 |
Triangle144×84×76 |
11 |
Trapezium122.3×104.4×80 |
|
2 |
Triangle144×84×155 |
12 |
Rectangle119.5×99.5×115 |
|
3 |
Triangle143.5×84×155 |
13 |
Irregular shape 114×105×115 |
|
4 |
Triangle144×84×130 |
14 |
Irregular shape 114×105×85 |
|
5 |
Triangle144×84×152.4 |
15 |
Irregular shape 114×105×110 |
|
6 |
Triangle 144×84×50 |
16 |
Irregular shape 114×105×80 |
|
7 |
Trapezium112.2×92×152.4 |
17 |
Pear shape 120.2×108×75 |
|
8 |
Trapezium112.2×92×50 |
|
|
|
9 |
Trapezium112×91×152.4 |
|
|
|
10 |
Trapezium122.3×104.4×80 |
|
|
